CS 66-460
Introduction to Graphical Human Machine Interfaces

Java (Part 1)

MONDAY,MARCH 31, 1997

Instructor: G. Bowden Wise
Rensselaer Polytechnic Institute
Spring 1997

Outline

Java Beginnings ...

Java began (in 1990) as ...

• a vision to get away from ``multi-API'' programming;
• a venture to develop software for the ``consumer electronics'' market;

  but also for a variety of networked deviecs and other embedded systems

• a novel idea of a small research group of top developers at Sun, code named the ``Green'' team;
• a new language, called ``Oak'', because none of the existing OO languages -- C++, Cedar/Mesa, Eiffel, Smalltalk, and Objective-C -- were sufficient
  • hand-held remote control: the *7
  • engaging interface: ``Duke'' was born



Java Beginnings ... (continued)

a foundation for a new product:

• the ``Green'' team became a company:
  First Person
• set-top boxes for video-on-demand ... due to corprorate politcs
• in 1993 the web had become very popular;
• the WebRunner browser is created in Oak;


Sun releases a new computing paradigm (1994):

• renames Oak to Java
• renames WebRunner to HotJava

Java

• Not just for creating animated/engaging Web pages;
• But a new environment for developing applications that are:
  • portable
  • robust
  • high performance
  • adaptive
  • secure
• more importantly
  • write once, run anywhere model
• ideal for developing
  • secure, distributed, network based end-user applications

  in many different environments

  • networked-embedded deviecs
  • World-Wide Web
  • the desktop

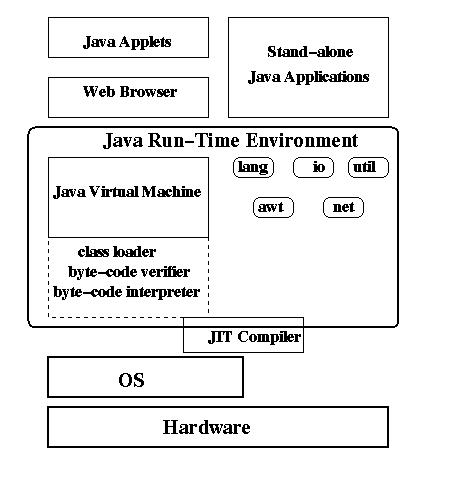

The Java Platform/Run-Time



Java Design Goals

• Simple
  so that it is easily programmed
• object-oriented
  to take advantage of modern software development methodologies;
  fit into distributed client-server applications
• familiar
  so that developers can learn quickly and easily
• Robust and secure
  for high reliability
• Architecture neutral, portable, and dynamically adapable
  to survive in a multiplatform jungle
• High performance
  necessary for highly interactive applications
• Multithreaded
  to support multiple threads in a single application; higher performance;
• Interpreted
  for maximum portability and dynamic capabilities

Java: Simple and Familiar

• Simple
  easy to use by developers
• Familiar
  so that developers can learn quickly and easily

How is this achived?

• Java looks like C++
• Removal of many ``features'' from C++ (and its predecessors):
  • to keep the language small
  • to make programming easiser
  • to make applications more secure and robust

Hello World!

As a Java program:

   class HelloWorld {
      static public void main (String args[]) {
         System.out.println ("Hello world!");
      }
   }

As a Java applet:

   import java.applet.Applet;
   import java.awt.Graphics;

   public class HelloWorld extends Applet {
       public void paint(Graphics g) {
           g.drawString("Hello world!", 50, 25);
       }
   }

Java: Primitive Data Types

• Integer types:
  byte (8-bit)
  short (16-bit)
  int (32-bit)
  long (64-bit)
• no unsigned integer types;
• Real types (as defined by the IEEE 754 spec):
  float (32-bit)
  double (64-bit)
• Character:
  char (unsigned, 16-bit Unicode)
• Boolean: boolean for true and false
• Arrays are first-class objects
• Strings are first class objects
  String (read-only)
  StringBuffer (read/write)

Arrays

Arrays:

• must be declared and allocated;
• do not have to be free'ed;
• have a length() accessor

Array example:

   Point myPoints[];
   myPoints = new Point[10];

   for (int i=0; i < 10; i++) {
      myPoints[i] = new Point();
   }

   int howMany = myPoints.length();

Strings

• can be read-only

  String hello = "Hello world";

• or modifiable

  StringBuffer dest = new StringBuffer(len);

have

• length() accessor
• + operator for concatenation:

"Input has " + count + " chars."

Memory Management and Garbage Collection

• Java removes memory management worries for the programmer.
• Java performs automatic garbage collection
• You use new to allocate memory; never call free (!)
• Memory model is based on objects and references to objects;
  • you get a ``handle'' to the object
  • java keeps track of references to objects
  • when an object has no more references, it can be garbage collected
• This model makes programming easier and eliminates many bugs

Features Removed from C/C++

• No more typedefs, #defines, or preprocessor
• No more structs or unions
• No more (global) functions
• No more multiple inheritance
• No more goto statements
• No more operator overloading
• No more automatic coercions
• No more pointers

Java Compile and Runtime
Environments



The Java Platform



The Bytecode Verifier

Prevent hostile applets and/or hostile Java compilers

• doesn't forge pointers to illegally manipulate objects outside the virtual machine
• doesn't violate access restrictions
• does access objects according to type
• does use correct types for all instruction parameters
• does use legal object field accesses according to their private, public, or protected definition

The Classloader

• loads built-in classes as well as those from other machines
• added security
  • each loaded class executes in its own namespace
  • single namespace for classes loaded from local file system
• when a class references another class
  • first looks for it in the local namespace
  • then in the namespace of the referencing class
  • no way for Java code to ``spoof'' a built-in class or a class loaded from another site
• security has been improved for JDK 1.1
