Lecture 8 — Tuples, Modules, Images

Overview

  • While most of this lecture is not covered in our text book, the lecture serves as an introduction to using more complex data types like lists.
  • We will first learn a simple data type called tuples which allow us to work with multiple values together - including returning two or more values from a function.
  • We will then revisit modules, how functions you write can be used in other programs.
  • Most of the class we will learning how to use a new module for manipulating images.
    • We will introduce a new data type - an image - which is much more complex than the other data types we have learned so far.
    • We will study a module called pillow which is specifically designed for this data type.
  • Class will end with a review for Monday’s Exam 1, so it will be a bit long...

Tuple Data Type

  • A tuple is a simple data type that puts together multiple values as a single unit.

  • Much like a list, a Tuple allows you to access individual elements: first value starts at zero (this “indexing” will turn into a big Computer Science thing!)

    >>> x = (4, 5, 10)   # note the parentheses
    >>> print(x[0])
    4
    >>> print(x[2])
    10
    >>> len(x)
    3

  • As we will explore in class tuples and strings are similar in many ways.

    >>> s = 'abc'
    >>> s[0]
    'a'
    >>> s[1]
    'b'

  • Just like strings, you cannot change a part of the tuple; you can only change the entire tuple!

    >>> x[1] = 2
    Traceback (most recent call last):
    File "<stdin>", line 1, in <module>
    TypeError: 'tuple' object does not support item assignment
    >>> s[1] = 'A'
    Traceback (most recent call last):
    File "<stdin>", line 1, in <module>
    TypeError: 'str' object does not support item assignment


What are tuples good for?

  • Tuples are Python’s way of making multiple assignments.

    >>> 2,3
    (2, 3)
    >>> x = 2,3
    >>> x
    (2, 3)
    >>> a,b=x
    >>> a
    2
    >>> b
    3
    >>> c,d=3,4
    >>> c
    3
    >>> d
    4

  • You can write functions that return multiple values.

    def split(n):
        ''' Split a two-digit number into its tens and ones digit '''
        tens = n // 10
        ones = n % 10
        return (tens, ones)

    x = 83
    ten,one = split(x)
    print( x, "has tens digit", ten, "and ones digit", one )


outputs

83 has tens digit 8 and ones digit 3
  • We can do the reverse, passing a tuple to a function.

    def combine( digits ):
        return digits[0]*100 + digits[1]*10 + digits[2]

    d = (5, 2, 7)
    print( combine(d))


outputs

527

First Lecture Exercise

We will take five minutes and work on the (only) two lecture exercises.

Basics of modules

  • Recall that a module is a collection of Python variables, functions and objects, all stored in a file.

  • Modules allow code to be shared across many different programs.

  • Before we can use a module, we need to import it. The import of a module and use of functions within the module have the follow general form.

    >>> import module_name
    >>> module_name.function(arugments)


Area and Volume Module

  • Here are a number of functions from the area calculations we’ve been developing so far, gathered in a single Python file called lec08_area.py:

    import math

    def circle(radius):
        ''' Compute and return the area of a circle '''
        return math.pi * radius**2

    def cylinder(radius,height):
        ''' Compute and return the surface area of a cylinder '''
        circle_area = circle(radius)
        height_area = 2 * radius * math.pi * height
        return 2*circle_area + height_area

    def sphere(radius):
        '''  Compute and return the surface area of a sphere '''
        return 4 * math.pi * radius**2

  • Now we can write another program that imports this code and uses it:

    import lec08_area

    r = 6
    h = 10
    a1 = lec08_area.circle(r)       #  Call a module function
    a2 = lec08_area.cylinder(r,h)   #  Call a module function
    a3 = lec08_area.sphere(r)       #  Call a module function
    print("Area circle {:.1f}".format(a1))
    print("Surface area cylinder {:.1f}".format(a2))
    print("Surface area sphere {:.1f}".format(a3))

  • We will review this in class.

PIL/PILLOW — Python Image Library

  • PILLOW is a series of modules built around the Image type, our first object type that is not part of the main Python language

    • We have to tell Python about this type through import
  • We will use images as a continuing example of what can be done in programming beyond numbers and beyond text.

  • See

    http://pillow.readthedocs.org/en/latest/handbook/tutorial.html

    for more details.

Images

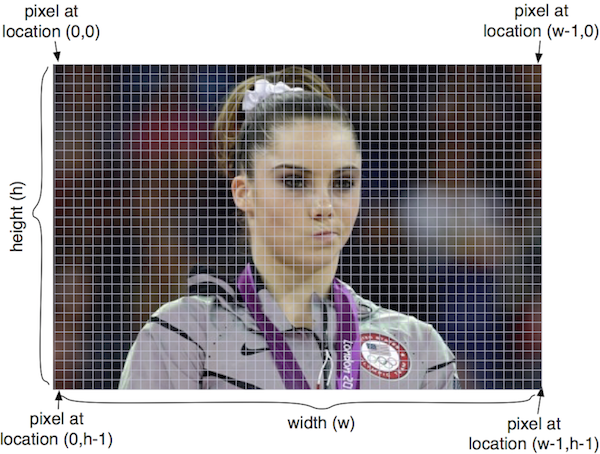

  • An image is a two-dimensional matrix of pixel values

  • The origin is in the upper left corner, see below:

    ../_images/image_premier.png
  • Pixel values stored in an image can be:

    • RGB — a “three-tuple” consisting of the red, green and blue values, all non-negative integers
    • L — a single “gray-scale” integer value representing the brightness of each pixel
  • Some basic colors:

    Color (red,green,blue) value
    Black (0,0,0)
    Red (255,0,0)
    Green (0,255,0)
    Blue (0,0,255)
    White (255,255,255)
    Light Gray (122,122,122)

Some important image modules

  • Image module contains main functions to manipulate images: open, save, resize, crop, paste, create new images, change pixels, etc.
  • ImageDraw module contains functions to touch up images by adding text to it, draw ellipses, rectangles, etc.
  • ImageFont contains functions to create images of text for a specific font.
  • We will only use the Image module in this lecture.

Our First Image Program

  • We’ll start by working through the following example which you can save as lec08_images_init.py:

    from PIL import Image

    filename = "chipmunk.jpg"
    im = Image.open(filename)
    print('\n' '********************')
    print("Here's the information about", filename)
    print(im.format, im.size, im.mode)

    gray_im = im.convert('L')
    scaled = gray_im.resize( (128,128) )
    print("After converting to gray scale and resizing,")
    print("the image information has changed to")
    print(scaled.format, scaled.size, scaled.mode)

    scaled.show()
    scaled.save(filename + "_scaled.jpg")


Image Type and Methods

  • Let us now see some very useful image methods. You need to be very careful with the image functions.

    • Some functions do change the image and return nothing (like the sort function for lists).
    • Some functions do not change the image and returns a value, which is sometimes a new image.

    It is crucial that you use each function correctly.

  • im = Image.open(filename) reads an image with the given filename

    and returns an image object (which we are associating with the variable im).

    • Because we only give the file name, and not a more complete path, the Python script and the image must be stored in the same folder.
  • Images are complex objects. They have associated properties that you can print or use. For example

    >>> im = Image.open('swarm.jpg')
    >>> im.size
    (600, 800)
    >>> im.format
    'JPEG'
    >>> im.mode
    'RGB'


    You can see that im.format and im.mode are strings, while im.size is a tuple. All of these are values associated with an image object.

  • im.show() is a function that displays the image.

  • im.save(filename) saves the image in the given file name

  • You can create an empty new image with given dimensions using: Image.new("RGB",(width,height)).

    >>> im5 = Image.new('RGB', (200,200))
    >>> im5.show()

  • You can also create a new image by cropping a part of a given image:

    >>> im.crop((w1,h1,w2,h2))


    which will crop a box from upper left corner (w1, h1) to lower right corner (w2,h2).

    You can see that the box is entered as a tuple.

    The image object im is not changed by this function, but a new image is returned. So, we must assign it to a new variable.

    Try this:

    >>> im2 = im.crop((100,100,300,400))
    >>> im2.show()
    >>> im.show()

  • You can get a new image that is a resized version of an existing image. The new size must be given as a tuple: im.resize((width,height))

    >>> im3 = im.resize((300,200))
    >>> im3.save('resized.jpg')

  • im.convert(mode) creates a copy of in image with a new mode - gray scale ('L') in the following example:

    >>> im4 = im.convert('L')
    >>> im4.show()


Something new, functions that change an image

  • The functions we have seen so far return a new result, but never change the object that they apply to.

  • More complex types often provide methods that allow us to change an image for efficiency reason.

  • You just have to remember how each function works same as we had for lists.

  • Here is our first function with this property: im1.paste(im2, (x,y)) pastes one image (im2) into the first image (im1) starting at the top left coordinates (x,y). The first image is changed as a result, but not the second one.

    Note that the second image must fit in the first image starting with these coordinates; otherwise, the pasted image will be cropped.

  • How we call such a function is different:

    >>> im1 = Image.open('sheep.jpg')
    >>> im1.size
    (600, 396)
    >>> im = Image.new('RGB', (600, 396*2))
    >>> im.paste( im1, (0,0))   ##not assigning the result of paste to a new variable
    >>> im.show()
    >>> im.paste( im1, (0, 396))
    >>> im.show()

  • The fact that the function paste changes an image is an implementation decision made by the designers of PIL, mostly because images are so large and copying is therefore time consuming.

    Later in the semester, we will learn how to write such functions.

Example 2: Cut and pasting parts of an image

  • This example crops three boxes from an image, creates a new image and pastes the boxes at different locations of this new image.

    from PIL import Image

    im = Image.open("lego_movie.jpg")
    w,h = im.size

    ## Crop out three columns from the image
    ## Note: the crop function returns a new image
    part1 = im.crop((0,0,w//3,h))
    part2 = im.crop((w//3,0,2*w//3,h))
    part3 = im.crop((2*w//3,0,w,h))

    ## Create a new image
    newim = Image.new("RGB",(w,h))

    ## Paste the image in different order
    ## Note: the paste function changes the image it is applied to
    newim.paste(part3, (0,0))
    newim.paste(part1, (w//3,0))
    newim.paste(part2, (2*w//3,0))
    newim.show()


Summary

  • Tuples are similar to strings and numbers in many ways. You cannot change a part of a tuple. However, unlike other simple data types, tuples allow access to the individual components using the indexing notation [ ].
  • Modules contain a combination of functions, variables, object definitions, and other code, all designed for use in other Python programs and modules
  • PILLOW provides a set of modules that define the Image object type and associated methods.

Reviewing for the exam: topics and ideas

Here are crucial topics to review before the exam.

  • Syntax: can you find syntax errors in code?
  • Correct variable names, assigning a value to a variable
  • Output: can you predict the output of a piece of code?
  • Expressions and operator precedence
  • The distinction between integer and float division
  • The distinction between division (4//5) and modulo (4%5) operators, and how they work for positive and negative numbers
  • Remember shorthands: +=, -=, /=, *=.
  • Functions: defining functions and using them
  • Distinguish between variables local to functions and variables that are global
  • Modules: how to import and call functions that are from a specific module (math is the only one we learned so far)
  • How to access variable values defined in a module (see math.pi for example)
  • Strings: how to create them, how to escape characters, multi-line strings
  • How to use input(): remember it always returns a string
  • Boolean data type: distinguish between expressions that return integer/float/string/Boolean
  • Remember the distinction between = and ==
  • Boolean value of conditions involving AND/OR/NOT
  • if/elif/else: how to write them. Understand what parts are optional and how they work
  • Creating, indexing and using lists
  • Remember the same function may work differently and do different things when applied to a different data type.
  • Review all about the different ways to call the print function for multiple lines of input
  • Operators: + (concatenation and addition), * (replication and multiplication), /, %, **
  • Functions: int(), float(), str(), math.sqrt(), min(), max(), abs(), round(), sum() etc.
  • Functions applied to string objects using the dot notation, where string is a string object, such as "car" or the name of a string variable:
    • string.upper(), string.lower(), string.replace(), string.capitalize(), string.title(), string.find(), string.count(), len()
  • Functions applied to list objects using the dot notation, where list is a list object, such as [2, 3, ["a", "b"], 4] or the name of a list variable:
    • list.append(), list.pop(), list.insert(), list.remove(), len(), list.sum()
  • Distinguish between the different types of functions we have learned in this class:
  • Functions that take one or more values as input and return something (input objects/values are not modified)
>>> min(3,2,1)
1
>>> mystr = 'Monty Python'
>>> len(mystr)
12
  • Functions that take one or more values as input and return nothing (input objects/values are not modified)
>>> def print_max(val1, val2):
...     print("Maximum value is", max(val1, val2))
...
>>> x1 = 10
>>> x2 = 15
>>> print_max(x1, x2)
Maximum value is 15
  • Functions that apply to an object, like a string, and return a value (but do not modify the object that they are applied to)
>>> mystr = 'Monty Python'
>>> mystr.replace('o','x')
'Mxnty Pythxn'
>>> mystr
'Monty Python'
>>> mystr.upper()
'MONTY PYTHON'
>>> mystr
'Monty Python'
  • Functions that are applied to an object, like an Image and modify it (but not return anything), we have only learned Image.paste so far (and images will NOT be on the exam).
>>> im.paste( im2, (0,0) )
  • Local vs. global variables: Can you tell what each of the print statements print and explain why?
def f1(x,y):
    return x+y

def f2(x):
    return x+y

x = 5
y = 10

print('A:', f1(x,y))
print('B:', f1(y,x))
print('C:', f2(x))
print('D:', f2(y))
print('E:', f1(x))

Reviewing for the exam: problem solving

In the remaining time we will go through several practice questions to demonstrate how we approach these problems. While our immediate concern is the exam, you will be developing your problem solving skills and programming abilities. Most of these questions have appeared on previous exams in CS 1.

  1. What is the exact output of the following Python code? What are the global variables, the function arguments, the local variables, and the parameters in the code?

    x=3

    def do_something(x, y):
       z=x+y
       print(z)
       z += z
       print(z)
       z += z * z
       print(z)

    do_something(1,1)
    y=1
    do_something(y,x)

  2. Write a Python function that takes two strings as input and prints them together on one 35-character line, with the first string left-justified, the second string right-justified, and as many periods between the words as needed. For example, the function calls

    print_left_right( 'apple', 'banana')
    print_left_right( 'syntax error', 'semantic error')


    should output

    apple........................banana
    syntax error.........semantic error


    You may assume that the lengths of the two strings passed as arguments together are less than 35 characters.

  3. In the United States, a car’s fuel efficiency is measured in miles driven per gallon used. In the metric system it is liters used per 100 kilometers driven. Using the values 1.609 kilometers equals 1 mile and 1 gallon equals 3.785 liters, write a Python function that converts a fuel efficiency measure in miles per gallon to one in liters per 100 kilometers and returns the result.

  4. Write a program that reads Erin’s height (in cm), Erin’s age (years), Dale’s height (in cm) and Dale’s age (years) and tells the name of the person who is both older and taller or tells that neither is both older and taller.
