Lecture 25 - Query Optimization and Concurrency in Transactions

Lecture 25 - Query Optimization and Concurrency in Transactions#

Today’s topics:#

  • Query Optimization

  • Concurrency:

    • Definition of serial and serializable schedules

    • Checking of serializable schedules

    • 2 Phase Locking

Announcements#

  • Office hours

    • My office hours today are from 2:15-3:15PM

    • I will hold office hours next week as usual: 2:30PM-5PM

    • Any additional office hours will be posted on Bulletin Board

    • Please ask questions on Bulletin board

  • Remaining lectures:

    • Today: Query Optimization and Concurrency in Transactions

    • Thursday: Concurrency in Transactions continued and Database Tuning

  • Remaining assignments:

    • Hw6: Due on today midnight

    • Lecture Exercise 24: due on Friday 12/12

    • Optional Lecture Exercise 3: due on Friday 12/12

    • Lecture Exercise 25: out today, due on Friday 12/12

  • We will drop the lowest 5 lecture exercises (despite the weird naming convention I used!). So two of these exercises can be treated as optional.

  • Use lecture exercises to study! Just because we drop some does not mean the material in them is optional. They are there for you to study.

  • Final Exam is on 12/18, 11:30AM-2:30PM on DCC 308

    • If you need extra time, expect to take the exam between 11:30AM-4PM

    • Notify me of any conflicts if you have not done so

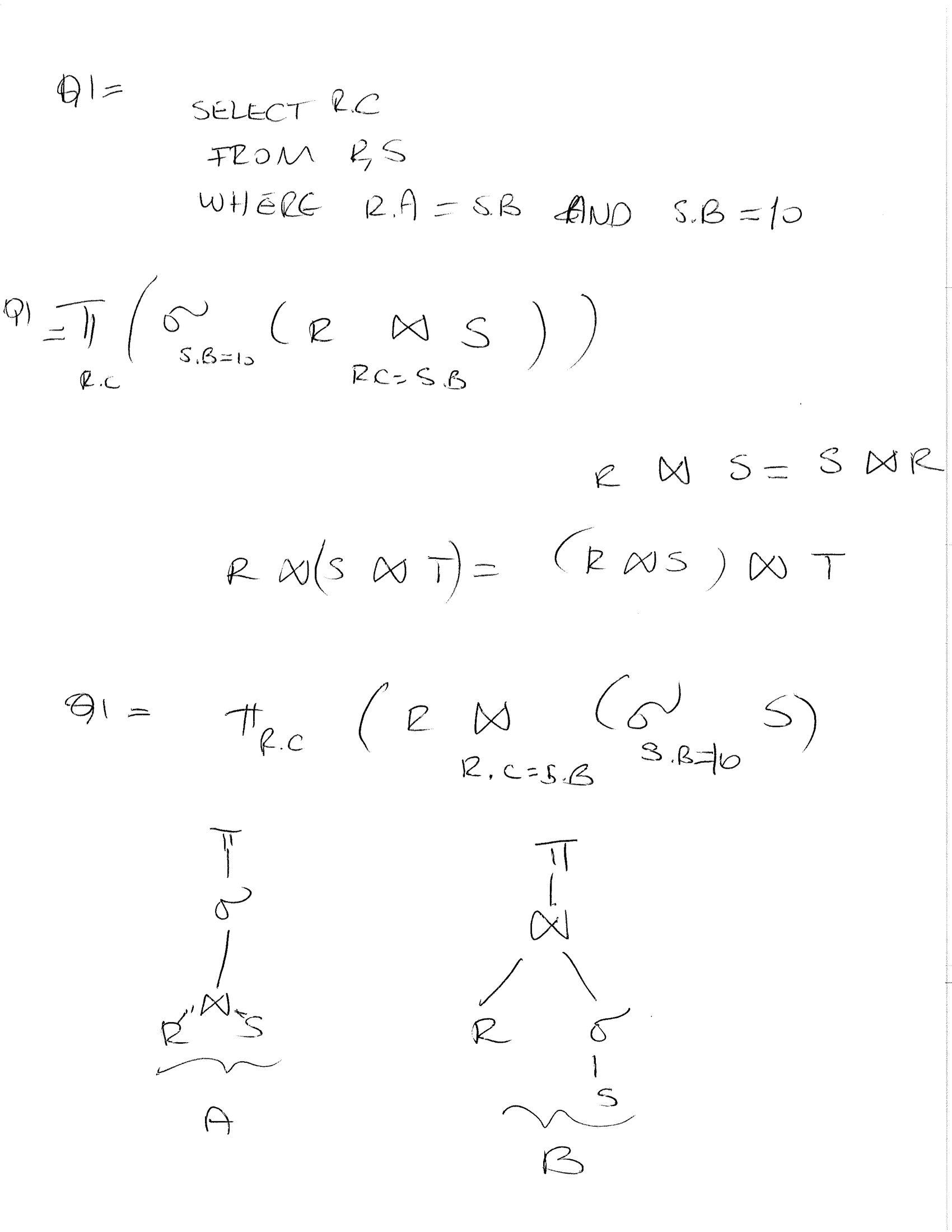

Query optimization#

  • Parse the query and simplify conditions if possible

  • Consider different query trees

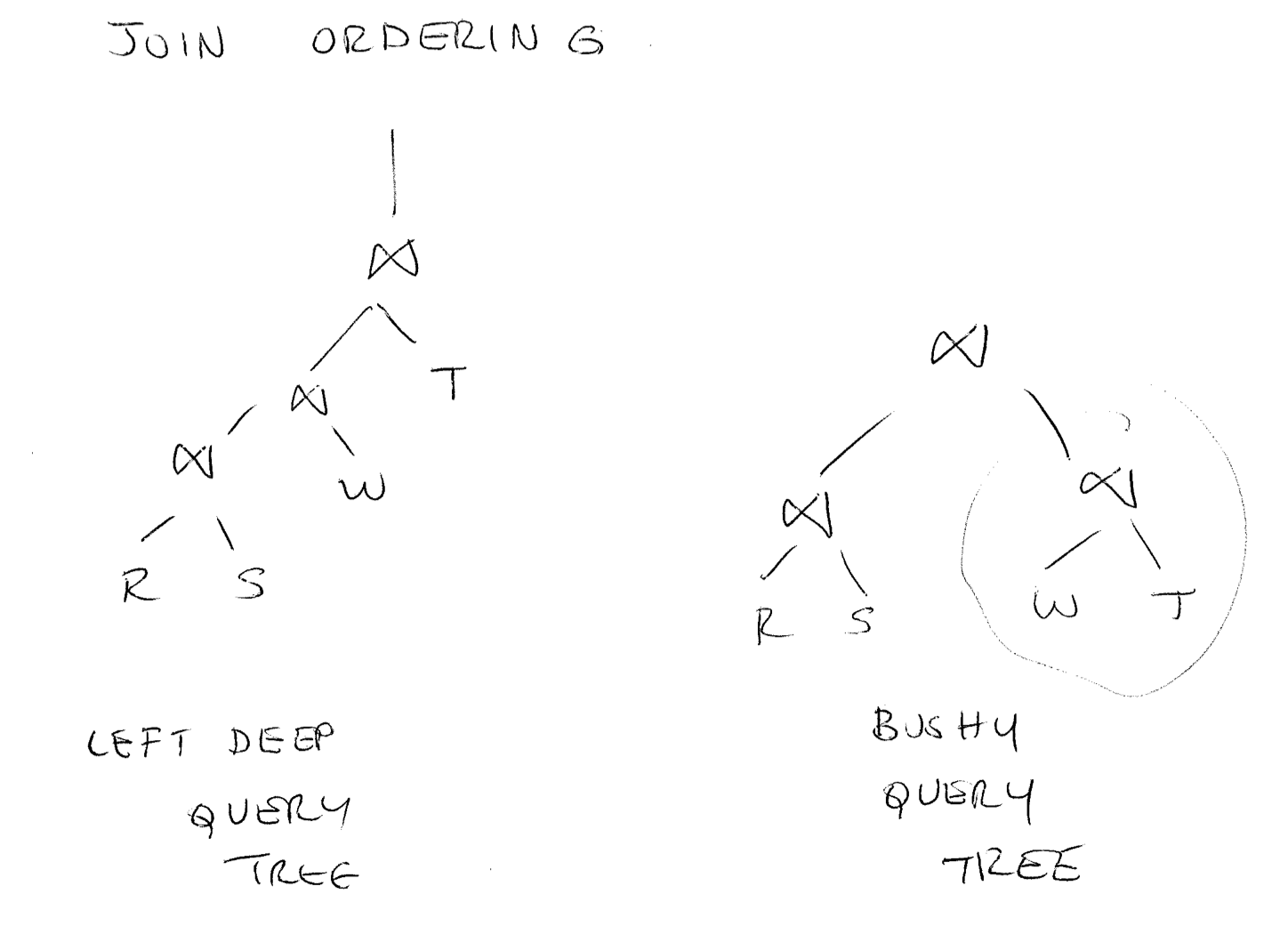

    • Join ordering

      • ( R join S vs S join R),

      • (R join S) join T vs (R join T) join S

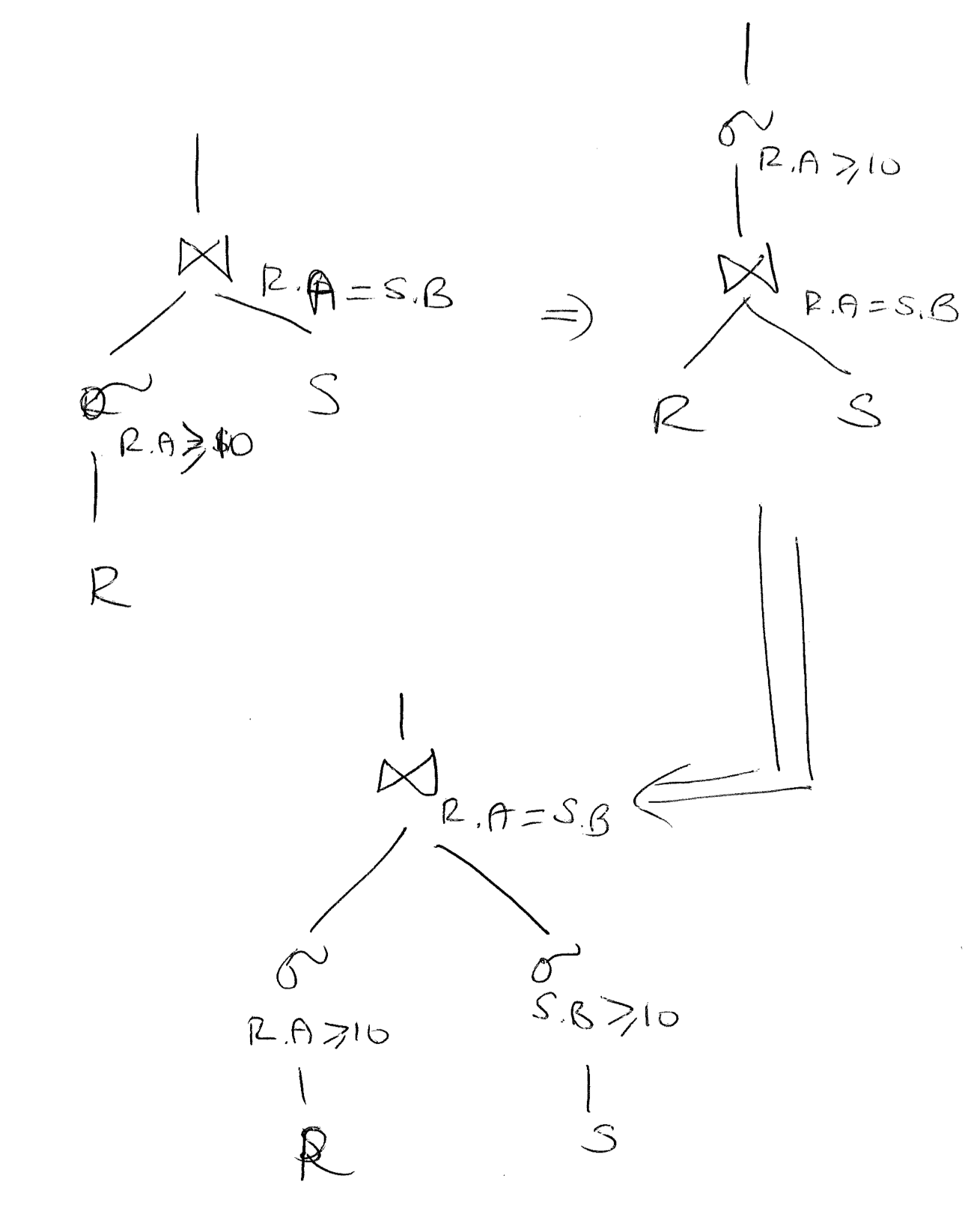

    • Consider pushing selections down joins

      • Potentially reduce size/cost of joins and allow for index scans

      • select_C (R join S) = select_C® join select_C(S)

    • Sorting may be beneficial (so consider sorting even if in the intermediate steps it appears too costly)

  • Query optimization works as a search algorithm:

    • Consider all possible 2- way joins (and selections/sorts applicable)

    • Add a third relation, and eliminate any 2-way joins that are too costly (compared to a 3-way join)

    • Continue until the whole query is implemented

Query Optimization 1 Join Ordering Pushing Selections Down

Transactions (xact) - Concurrency - Isolation#

  • A transaction has an beginning and an end point

BEGIN TRANSACTION ;
select ...
insert ...
delete ...
COMMIT ;

  • Atomicity of transactions:

    • Either all the transaction succeeds and all the changes it made are final, or the transaction has no effect in the database.

    • This includes all the impacts of the transaction that becomes a part of the transaction: e.g. foreign key cascade/set null, triggers.

  • Isolation of transactions:

    • We write xacts assuming it is the only one executing or even if other xacts are executing, it will not cause a problem.

  • There is no problem if only one transaction executes in the database.

    • So if the xacts executed serially!, then the result would be fine.

  • A parallel execution of xacts if also fine! (no problem), if the result is the same as one of a serial order of xacts.

    • This is called a serializable execution.

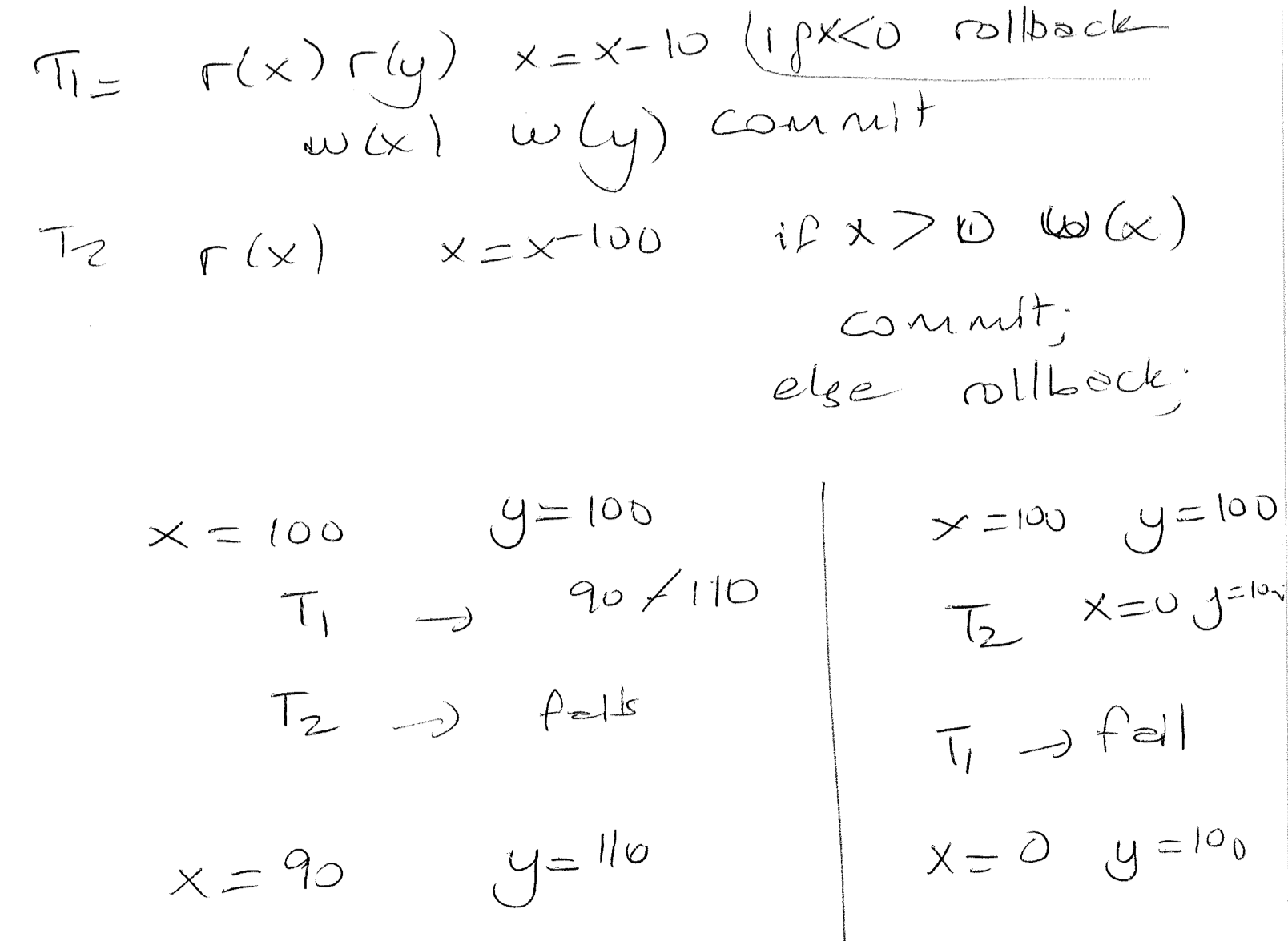

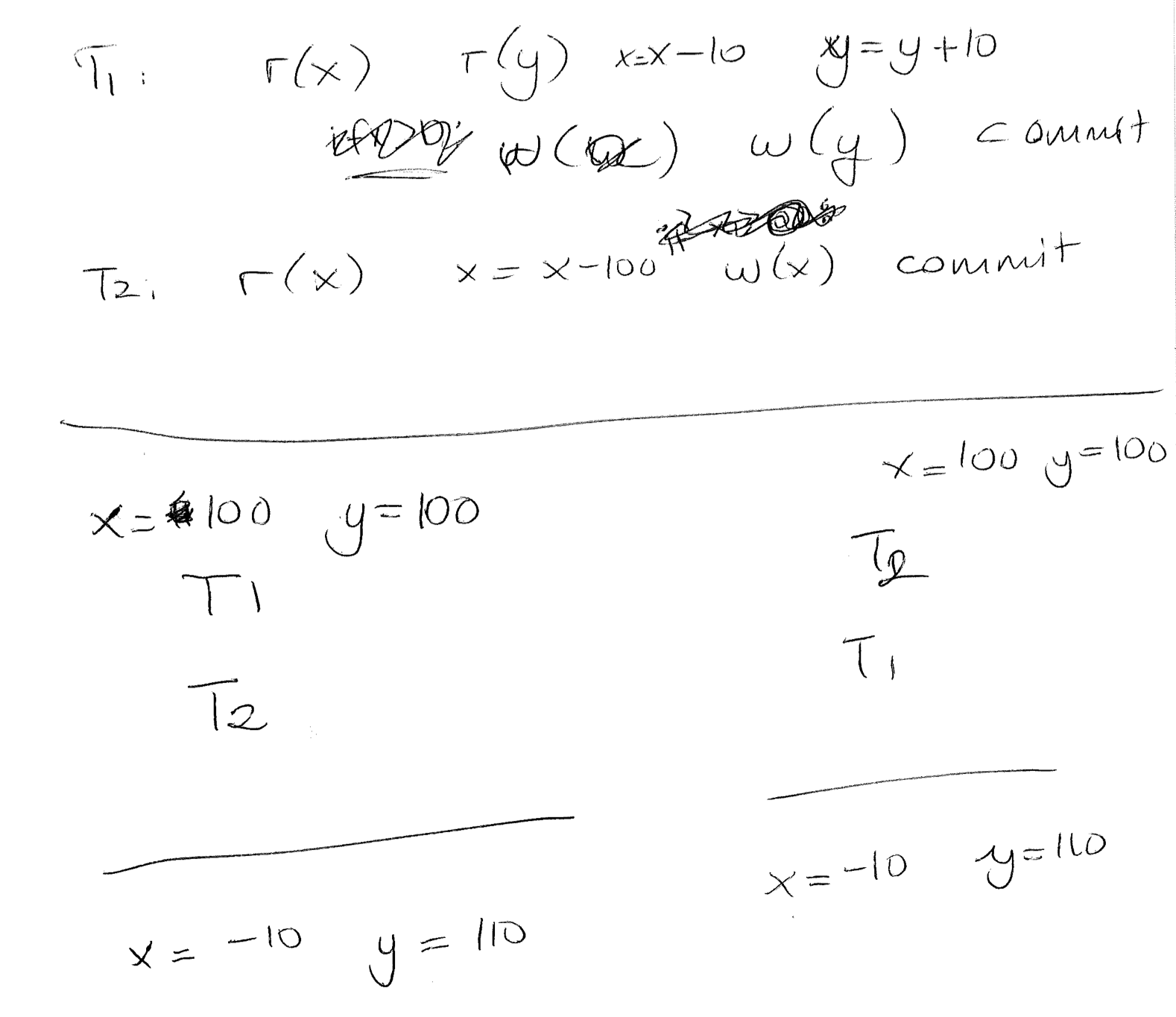

Let us see two different transactions and the result of their potential serial executions.

Transaction model 1 Transaction model 2

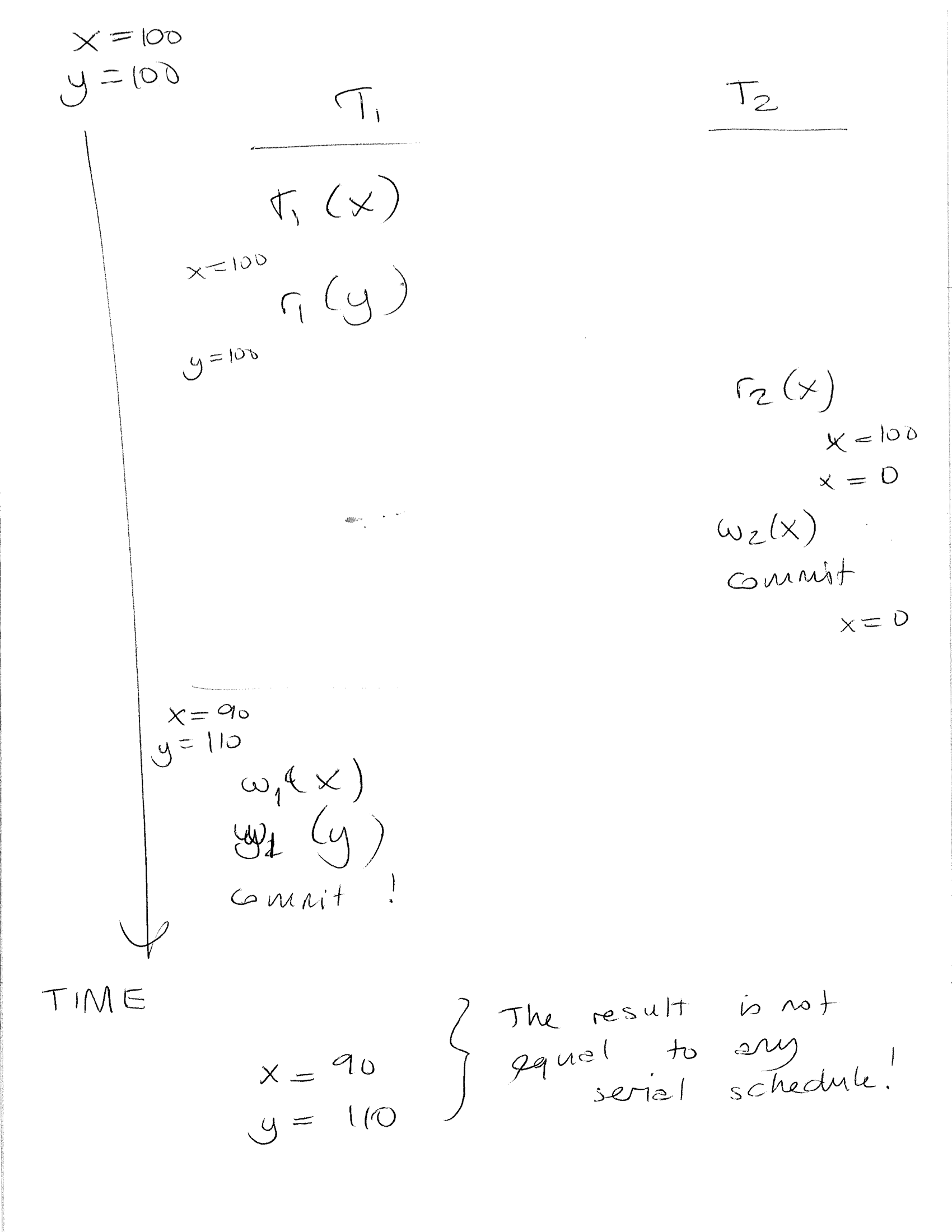

Now let us see a different execution which does not produce the same results as any serial execution.

Transaction model 1

Serializable Transactions

  • Simplify transactions into read/write operations

    • T1: r1(x) r1(y) w1(x) w1(y) c

    • T2: r2(x) w2(x) c

  • Simplify the execution of operations into schedules (ordering of the transaction operations):

    • s1: r1(x) r1(y) w1(x) w1(y) r2(x) w2(x)

    • s2: r2(x) w2(x) r1(x) r1(y) w1(x) w1(y)

    • s3: r1(x) r1(y) r2(x) w2(x) w1(x) w1(y)

    • s4: r1(x) r1(y) w1(x) r2(x) w1(y) w2(x)

  • A schedule is serializable if there exists a serial order of transactions S such that all reads are guaranteed to have the same value as serial order S and if all writes occur in the same order as the serial order S.

  • A conflict in a schedule is two operations by two different transactions on the same item and one of them is a write operation.

  • Conflicts:

    • r1(x) … w2(x)

    • w1(x) … r2(x)

    • w1(x) … w2(x)

  • If the ordering of a conflicting operation is changed, the final result of the transaction may change.

    • r1(x) … w2(x) vs… w2(x) … r1(x)

    • w1(x) … w2(x) vs. w2(x) … w1(x)

  • A schedule is serializable if there exists a serial order of transactions S such that all conflicting operations in the schedule occur in the same order as a serial schedule.

    • s1: r1(x) r1(y) w1(x) w1(y) r2(x) w2(x)

    • s2: r2(x) w2(x) r1(x) r1(y) w1(x) w1(y)

  • Given s4: r1(x) r1(y) w1(x) r2(x) w1(y) w2(x) list all conflicts:

r1(x) w2(x) w1(x) r2(x) w1(x) w2(x)

  • Given s1: r1(x) r1(y) w1(x) w1(y) r2(x) w2(x) list all conflicts:

r1(x) w2(x) w1(x) r2(x) w1(x) w2(x)

  • All conflicts in s4 occur in the same order as s1. s1 is a serial schedule (T1 T2). Hence, s4 is serializable.

  • Given s3: r1(x) r1(y) r2(x) w2(x) w1(x) w1(y) list all conflicts:

r1(x) w2(x) r2(x) w1(x) w2(x) w1(x)

  • There is no serial order that has this ordering!

    • T1 T2 (r2(x) w1(x), w2(x) w1(x) not possible)

    • T2 T1 (r1(x) w2(x) not possible)

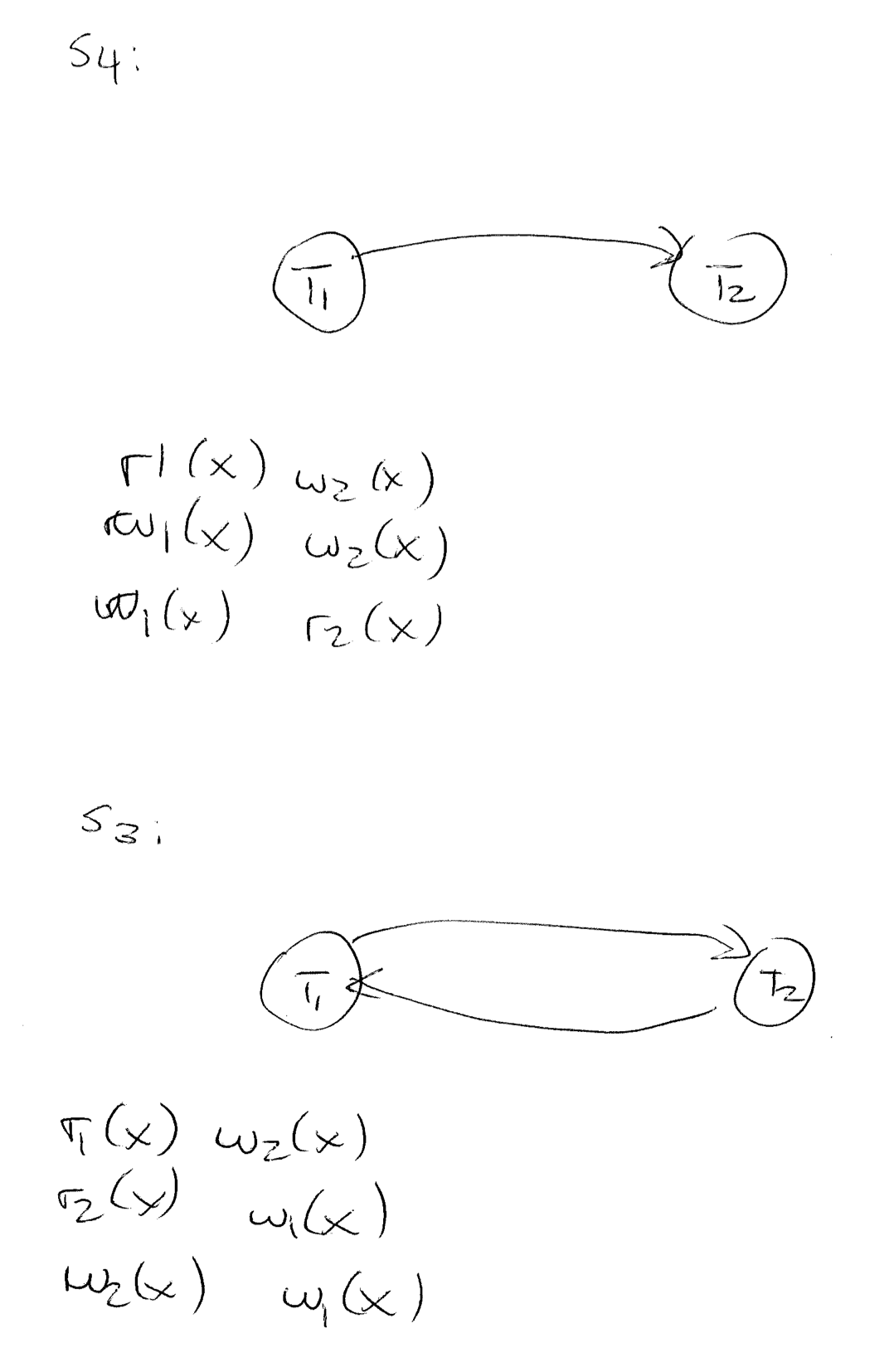

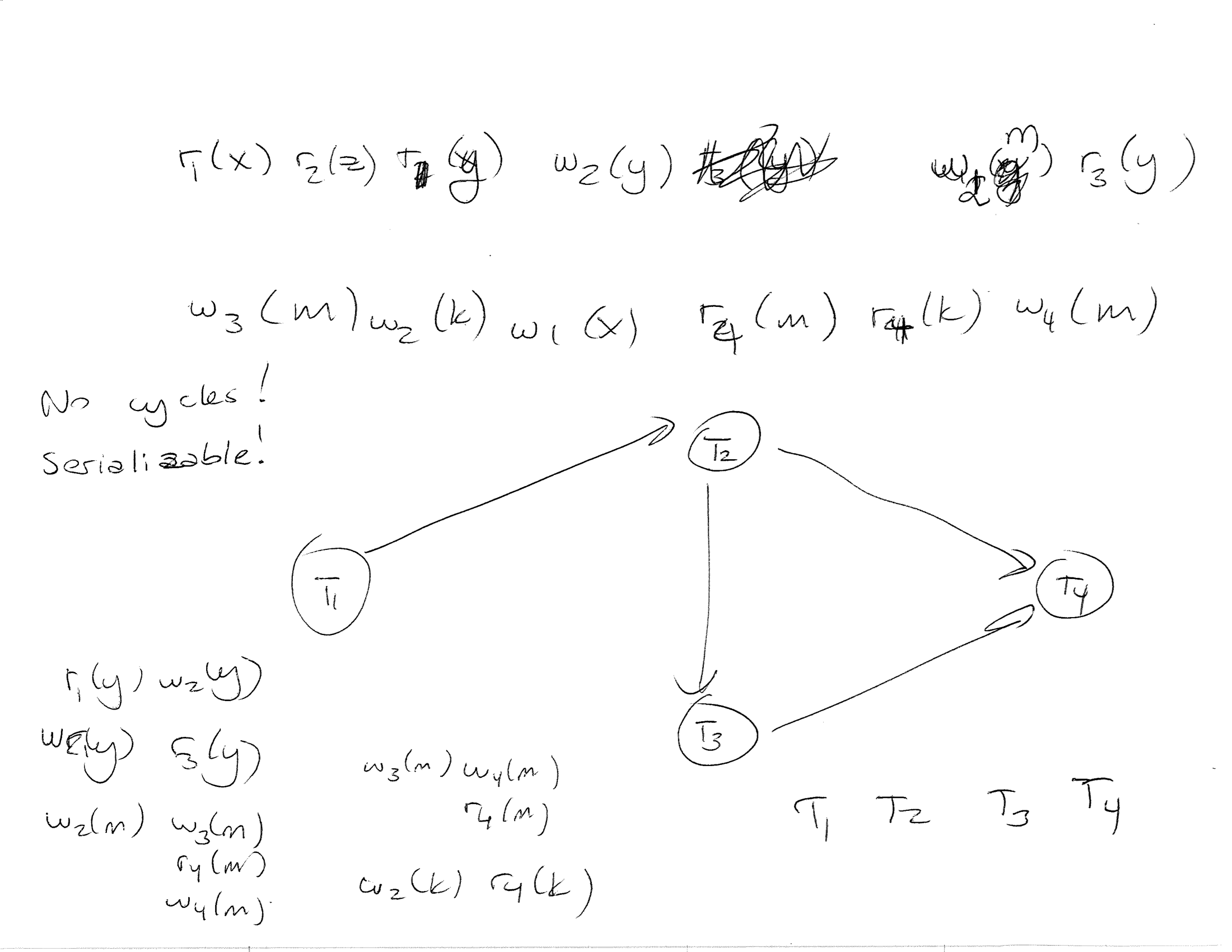

Conflict Graph

  • Each transaction is a node

  • For every conflict T1…T2 (such as r1(x) w2(x) or w1(x) w2(x)), there is an edge from T1 to T2

  • If the graph has a cycle, then the given schedule is not serializable

  • If the graph has no cycles, then the given schedule is serializable and we can find the corresponding serial schedule using topological search on the conflict graph

Conflict Graph Conflict Graph
